L3Harris

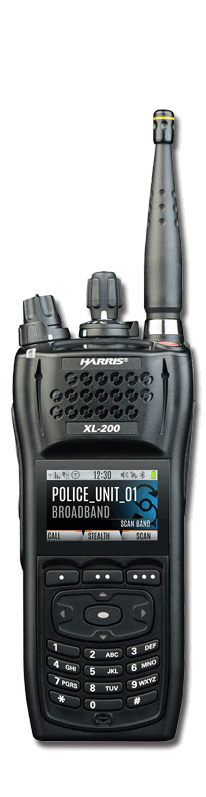

XL-200P

Designed from the ground up, the XL-200P is engineered for audio excellence. It combines a powerful 1.5/4.0 watt max amplifier and custom speakers with advanced noise cancellation technology to suppress feedback, delivering clear communications in a wide range of noisy environments.


Frequency Band:
VHF, UHF, 700/800 MHz

Frequency Range:
VHF: 136-174 MHz
UHF: 378-522 MHz
700/800: 768-776, 798-806, 806-816, 851-861 MHZ

Power Output:
VHF: 1-6 W
UHF: 1-5 W
700/800: 0.5-3W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):

Number of Channels/Groups/Zones:
1,250 total conventional channels and 13,824 total talkgroups

Channel spacing:
25, 12.5 6.25 kHz

Dimensions H x W x D (with standard battery)
5.8 x 2.3 x 1.6 in (148.0 x 60.0 x 42.0 mm)

Weight (with standard battery)
18.7 oz (516 g)

Keypad / Keys
Backlight, 3 soft keys, 5-way navigation key, full DTMF keypad

Display
Front Display: 320 x 178 pixels, 1.8 inch transflective LCD, 16-bit color with backlight
Top Display: 128 x 32 pixels, 1.1 inch multi-color backlight, sunlight readable

Operating temperature
-22° F to +140° F (-30° C to +60° C)

Mil spec
810D, E, F, 810G

IP Standards
IP68

Full-spectrum, LTE-capable, multiband P25 radio
You’re ready for anything, shouldn’t your radio be, too? This full-spectrum, multiband radio delivers leading-edge connectivity across VHF, UHF and 700/800 MHz and broadband LTE. Because emergencies don’t stop for an update, GPS, Bluetooth® and Wi-Fi® come standard. From wireless updates, to turning your radio into a personal Wi-Fi hotspot, the XL-200P lets you work with minimal interruption, so you stay focused on what’s important.

Loud, clear audio
Combining a 1.5/4.0 watt max amplifier and dual speakers with advanced noise cancellation, the XL-200P delivers clear, loud audio in a wide range of challenging environments. In addition, Bluetooth integration with leading firefighting Self-Contained Breathing Apparatus (SCBA) improves in-mask audio and quality of communications on the fireground.

One tough Public Safety radio
Built on a rigid metal I-beam frame, this radio is engineered for top performance in severe environments. As if meeting the tough MIL-SPEC standards IP68 and MIL-STD 504.1 weren't enough, this portable is also ruggedized to meet MIL STD 504.1 for contamination by fluids and MIL-STD 511.4 for flammability. The intuitive and easy-to-use XL-200P also features an A-B-C-D switch that’s easy to operate while wearing gloves, plus front and top LCD displays--all packaged in a slim, ergonomically-contoured shape. Plus, its 10-hour battery lasts all shift long with a streamlined profile that won’t add bulk to your belt.

Key benefits

  • AT&T and Verizon Certified and FirstNet Ready™
  • Loud and clear audio with advanced noise cancellation
  • Optional cell modem for voice and data wherever cellular/LTE are available
  • Built-in Wi-Fi®, Bluetooth® and GPS connectivity
  • Ruggedized to meet stringent MIL-SPEC standards
  • Secure voice and data encryption
  • Intuitive and easy-to-use
