Frequency Band:
VHF, UHF, 700/800 MHz
Frequency Range:
VHF: 136-174 MHz
UHF: 378-430 MHz
700/800: 764-776, 794-805, 806-825, 851-870
Power Output:
VHF, UHF: 50W
700/800: 30-35W
Number of Channels/Groups/Zones:
Channel spacing:
25 / 12.5 kHz
L3Harris
XG-25M

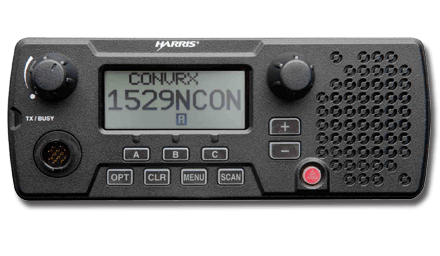

The economical and feature-rich L3Harris XG-25M Mobile delivers exceptional audio and secure, reliable mission-critical communications. This P25 Phase 2 capable mobile is an ideal choice for first responders and utilities who want just one radio to manage their migration needs.
Designed for use on P25 and L3Harris legacy platforms, the XG-25M also supports EDACS®, ProVoice™ and OpenSky® systems. This flexible solution supports wideband and narrowband channels and has a software-defined architecture for in-field upgrades to additional modes including P25 trunking.
Dimensions H x W x D
2.8 H x 7.24 W x 7.9 D in (7.1 H x 18.4 W x 20.0 D cm)
Weight (without brackets)
5.9 lbs (2.6 kg)
Keypad / Keys
Display
Operating temperature
-22° to +140°F (-30° to +60°C)
Mil spec
810D, E, F, G
IP Standards
IP54 (Control Unit)
Features
- Best value P25 Phase 2 mobile
- Advanced features, including AES/DES encryption, OTAR, and Bluetooth®
- Narrowband capable
- Meets MIL-STD-810G for ruggedness
- Large font display for easy reading
- Control head equipped with front speaker
- GPS optional
Operating Modes
- P25 Phase 1 and 2 Trunking
- P25 Digital Conventional
- EDACS® / ProVoice™ Trunking
- OpenSky®
- Conventional Analog
For more information on accessories, please Contact Us
