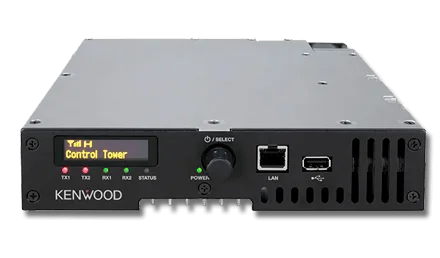

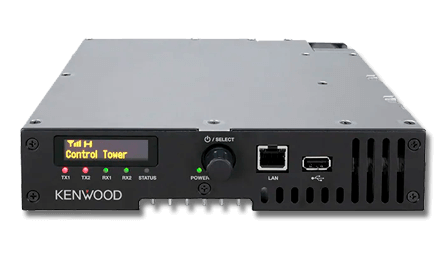

KENWOOD NXR-1700e/1800e

KENWOOD NXR-1700e

Kenwood

NXR-1700e/1800e

Multi-Mode, Space Saving Solution
The Kenwood NXR-1000E series repeaters continue the line of migration friendly and forward thinking infrastructure to offer the ultimate in modern scalability and security for analog, NXDN™ and DMR two-way systems in a new and compact form-factor. Whether you are managing a single repeater, a wide area multi-site system or are managing multiple systems remotely, the NXR-1000E brings forward the same great digital two-way system capabilities while introducing the native ability to network analog and digital voice and data calls, enhanced secure remote programming, support for SSL certificates, SNMP monitoring, event and hardware logging, as well as tiered user management roles. For IT managers, this powerful repeater easily fits within modern organizational and technical requirements for support. For RF professionals the NXR-1000E is the perfect solution for an extensive range of customer needs.

Frequency Band:
UHF / VHF

Frequency Range:
VHF 136-174: UHF 400-470: UHF 450-520

Power Output:
VHF - 50 W; UHF - 40 W

Number of Channels/Groups/Zones:
32 Channel

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Dimensions W x H x D
8.21 x 1.73 x 8.33 in

Weight
4.18 lb

Keypad / Keys
No Keypad

Display
1.71-inch OLED with Icons and Numeric Displays

Operating temperature
-22°F to +140°F

Mil spec
810-H

IP Standards
N/A

  • Light, Compact and Space-Efficient
  • 1.71-inch OLED with Icons and Numeric Displays
  • Thermal-Controlled Cooling Fan
  • Up to 32 Channels
  • Selectable Digital Protocol: DMR Tier II / NXDN Conventional*2 (programmable one at a time)
  • USB-A Connector for Audio Accessories
  • External In/Out Pin from DB25
  • Non-repeat Simplex / Semi-Duplex Mode for Analog and NXDN Digital*2
  • Hot Standby System Redundancy
  • Built-in IP Network Adapter
  • Unicast and Multicast Call Routing
  • SNMP protocol for network management
  • Supports G.711 Audio Codec (for Test console and Third-party Applications)
  • IP Remote Management (Monitor / Control / Programming / Test Console)
  • IPIF to External Applications (for IP Console, OTAP)
  • IP Network Voice Logging Interface*3
  • Built-in SIP IF (Digital Only)*1, *2
  • IP Remote Control Interface (IPRCI)
  • Enhanced Security (HTTPS)
  • CW ID
  • Multi-Site Conventional IP Network up to 16 Sites (for both Digital and Analog)*2
  • IP Networking Compatible with NXR-5000 (NXDN)*2, legacy KTI-3 (NXDN)*2 and KTI-5 (DMR)*2

*1 Requires version upgrade of terminal to obtain compatibility with this model
*2 Software option
*3 Future release
