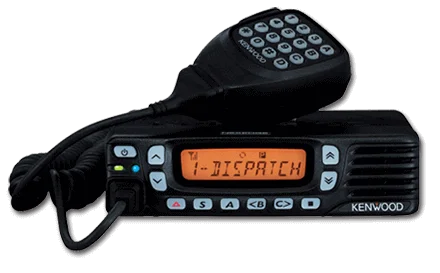

The KENWOOD NX-720HG and NX-820HG provides conventional and trunking operation and provides 6.25 kHz digital narrowband operation. NEXEDGE® was designed to provide advanced communication solutions that meet the needs of private enterprise and public sectors today and in the future. NEXEDGE® includes features such as FM Analog @ 25 and 12.5 kHz channels, NXDN® digital @ 12.5 and 6.25 kHz channels, compliance with current frequency assignments, and NEXEDGE® will easily convert to very narrow bandwidths in the future.
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz / 400-470, 450-520 MHz
Power Output:
30W- 50W VHF / 30W - 45W UHF
Number of Channels/Groups/Zones:
260 Channels / 128 Zones
Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog - 6.25 / 12.5 kHz Digital
Dimensions W x H x D
6.30 x 1.69 x 5.35 in
Weight
2.87 lb
Keypad / Keys
No Keypad
Display
10 Character Alphanumeric Aliases
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54
 | KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
| KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak) |
 | KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in) |
 | KES-5 External speaker, 40W max input |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
 | KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option) |
 | KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft) |
 | KCT-60M DB15-to-15pin Molex Adapter Cable |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
