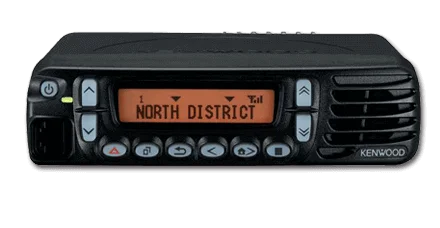

As smart in operation as they are in looks, the KENWOOD NX-700 and NX-800 radios feature everything necessary to take full advantage of both digital and analog operating modes. Mobile users will appreciate the large dot-matrix LCD, intuitive controls and multi-scan capabilities.

Performance

Frequency Band:
VHF, UHF

Frequency Range:
136-174 MHz / 400-470, 450-520 MHz

Power Output:
30W- 50W VHF - 30W - 45W UHF

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
12.5 / 15 / 25* / 30* kHz 12.5 / 25* kHz Analog
12.5 / 25 kHz Digital

Physical

Dimensions W x H x D
6.30 x 1.77 x 6.18 in

Weight
3.04 lb

Keypad / Keys
No Keypad

Display
14-Character Alphanumeric Aliases

User Environment

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

Dash & Remote Mount
Dual Control Head Remote Mount
14-Character Alphanumeric Aliases
Backlit Dot Matrix LCD
Function/Status LCD Icons
Multi-Language Display
Date & 12/24 Hour Time Clock
Transmit/Busy/Call Alert/Warn LED
On/Off Power Control
4 Up/Down Selectors
6 Front PF Keys
Emergency/AUX Key
4W Speaker Audio
DB-25 Accessory Connector
9 Programmable AUX I/Os
2 Programmable AUX Outputs
KPG-111D Windows® FPU
Flash Firmware Upgrading
PC Serial Interface
SDM Manual Input
Transparent Data Mode1
GPS Receiver Option
VGS-1 Voice Guide / Voice & GPS Data Storage Option

Control Station Accessories [+]

	KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). (mobile mounting hardware included)
	KMC-59C Control Station Desktop Microphone (8-pin mod. plug) Note: Compatible with FDMA (analog) and TDMA operations.
	KMC-9C Control Station Desktop Microphone (8-pin mod. plug)
	KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Microphones And Speakers [+]

	KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in)
	KES-5 External speaker, 40W max input Note: requires KCT-60M installed.
	KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
	KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

	KAP-2 Horn Alert/P.A. Relay Option Note: For MPT, HA operates in Trunked Mode only.
	KCT-23M DC Cable (35-50W Dash mount; pos/neg. 10 ft. leads)
	KCT-23M3 DC Cable (35-50W Remote mount; pos.23 ft.; neg. 3.3. ft. leads)
	KCT-46 Ignition sense cable (plugs directly into mobile chassis ignition sense line).
	KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max).
	KMB-10 Key lock adapter
	KRK-10 Remote Control Kit (a remote control cable (23 ft) is included).
