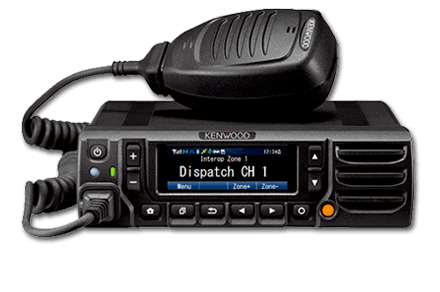

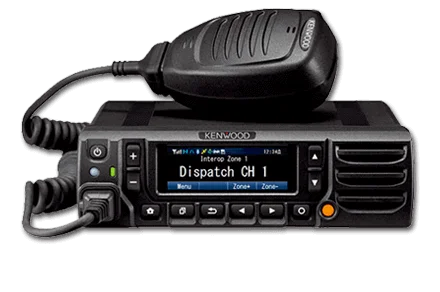

The NX-5000 Series offers unsurpassed interoperability for a wide variety of users as it supports three digital CAIs — NXDN, DMR and P25 (Phase 1 & 2) — plus FM analog in a single radio. Best of all, a desired CAI can be selected at will, giving you the freedom to migrate at your own pace — whether you are intent on going fully digital, undecided about which digital system to pick, or just wanting to maintain both digital and analog for a while. A NX-5700, NX-5800, and NX-5900 radio can simultaneously support two digital protocols plus analog, offering the following combinations: FM/DMR/ NXDN, FM/NXDN/P25, and FM/DMR/P25.
Frequency Band:
VHF/UHF/700MHz/800MHz
Frequency Range:
136-174 MHz / 450-520 MHz, 380-470 MHz / 763-776, 851-870 MHz
Power Output:
5W – 50W / 5W – 45W / 2W – 30W, 2W – 35W
Number of Channels/Groups/Zones:
1024 Channels / 128 Zones (Up to 4,000 with option)
Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D
6.69 x 1.89 x 6.93 in.
Weight (with standard battery)
3.53 lbs
Keypad / Keys
Display
Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display
Operating temperature
-22°F to +140°F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
 | KCT-71A100 KCT-71A Extended Control Head Cable (up to 100 ft. max.) |
| KCT-71A50 KCT-71A Extended Control Head Cable (up to 50 ft. max.) |
| KCT-71M2 Remote Control Cable (17 feet) |
| KCT-71M3 Remote Control Cable (25 feet) |
| KCT-71M4 Remote Control Cable (1.6 feet) |
 | KCT-77M2 Remote Control Cable for KCH-21RM (17 feet) |
| KCT-90USB USB Mobile Cable for SD Card Direct Access Support |
| KCT-91MRS DB25 Cable for Mobile Relay Station (Conventional Only |
| KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). |
 | KMC-59C Control Station Desktop Microphone (8-pin mod. plug) |
 | KMC-9C Control Station Desktop Microphone (8-pin mod. plug) |
| KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak) |
| KRK-14HM Control Head Interface Kit for KCH-19M |
| KRK-15BM Control Head Remote Kit for a RF Deck |
 | KCT-73MIC External Microphone kit w/9.8 ft. cord for Safer Driving |
 | KCT-74PTT External PTT Switch kit w/9.8 ft cord for Safer Driving |
 | KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in) |
 | KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied |
 | KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug) |
| KAP-2 Horn Alert/P.A. Relay Option |
| KCT-23M DC Cable (35-50W Dash mount; pos/neg. 10 ft. leads) |
| KCT-23M3 DC Cable (35-50W Remote mount; pos.23 ft.; neg. 3.3. ft. leads) |
 | KCT-46 Ignition sense cable (plugs directly into mobile chassis ignition sense line). |
 | KCT-72 External Accessory Connection Cable for KRK-18HM |
 | KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max). |
 | KMB-10 Key lock adapter |
| KMB-33M Standard Mounting Bracket |
| KRA-40GM GPS Antenna |
| KCH-19M Basic Control Panel |
| KCH-20RM Full Featured Remote Control Panel. No Internal Speaker included. |
| KCH-21RM Hand Held Control Head for Long Cable |
| KCH-21RM-S Hand Held Control Head with Short Cable (4 ft.) |
RADIO
RF Deck Only
