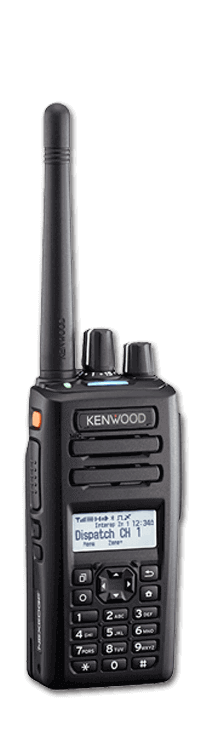

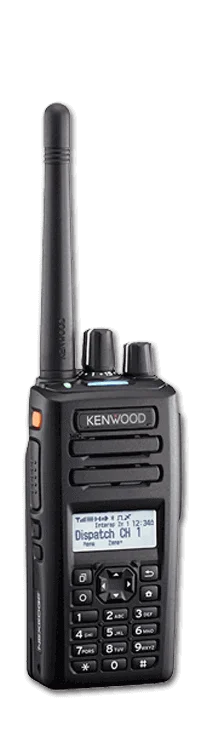

The versatile KENWOOD NX-3200 and NX-3300 handheld radios support both NXDN® and DMR digital protocols as well as mixed digital & FM analog operation, enabling them to serve with distinction in a wide range of enterprise and operation-critical applications. Compact yet designed with durability in mind, they are packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. Three different models with 14-pin Universal connector are available: Full Keypad model with LCD, Standard Keypad model with LCD and a large 4-way D-pad, and the Basic Model without LCD or keypad. Additionally, for expansion capability a software license certification system facilitates extensive customization.
Frequency Band:
VHF/UHF
Frequency Range:
136-174 MHz / 450-520 MHz
Power Output:
5W / 4W / 1W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
9 Hours
Number of Channels/Groups/Zones:
512 Channels / 128 Zones with LCD - 64 Channels / 4 Zones for no LCD models
Channel spacing:
12.5/15/20/25/30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital
Dimensions W x H x D (with standard battery)
2.20 x 4.71 x 1.43 in
Weight (with standard battery)
11.1 oz
Keypad / Keys
4-way Directional-pad (D-pad)
Display
4-Line Basic Frame / 14 Characters
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54, IP55, IP67
 | KRA-22M VHF low-profile antenna 148-162 MHz |
| KRA-22M VHF low-profile antenna 162-174 MHz |
| KRA-22M VHF Low-profile helical antenna 136-150 MHz |
 | KRA-23M UHF low-profile antenna 450-490 MHz |
| KRA-23M2 UHF low-profile antenna 470-520 MHz |
| KRA-23M3 UHF Low-profile helical antenna 403-430 MHz |
 | KRA-25 High-gain VHF helically loaded whip antenna 148-162 MHz |
 | KRA-26M VHF helical antenna 146-162 MHz |
| KRA-26M2 VHF helical antenna 162-174 MHz |
| KRA-26M3 VHF helical antenna 136-150 MHz |
 | KRA-27M UHF whip antenna 440-490 MHz |
| KRA-27M2 UHF whip antenna 470-520 MHz |
| KRA-27M3 UHF whip antenna 400-450 MHz |
| KRA-28 Broadband VHF helically loaded whip antenna 140-170 MHz |
 | KBP-5 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included |
| KMB-16 Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included) |
| KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included) |
 | KNB-55L 1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger |
 | KNB-56N 1400 mAh, Ni-MH battery |
 | KNB-57LAM 2000 mAh, Li-ion battery |
 | KNB-78LM 2860 mAh, Li-ion battery, IP67, battery only, best for trunked mode operation |
 | KNB-79LCM CSA US Intrinsically Safe Battery Li-ion 2860mAh, IP67, battery only [Intrinsically Safe Option] |
 | KSC-256AK Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM |
 | KSC-25LSK 100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery |
| KSC-25SK 110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC |
| KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only |
| KVC-4 Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4. |
 | KBH-11 Spring action belt clip (2.5") |
| KBH-8DS Leather swivel belt loop with portable D-Ring attachment |
| KLH-206K Heavy-Duty Leather Case w/Swivel Belt Loop for Basic Model |
| KLH-206K2 Heavy-Duty Leather Case w/Swivel Belt Loop for Standard Keypad Model |
| KLH-206K3 Heavy-Duty Leather Case w/Swivel Belt Loop for Full Kyepad Model |
| KLH-207K Nylon carrying case for Basic Model |
| KLH-207K2 Nylon carrying case for Standard Keypad Model |
| KLH-207K3 Nylon carrying case for Full Keypad Model |
 | KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics |
| KHS-11BL 2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-12BL 3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory] |
| KHS-14 Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-BH Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KHS-15D-OH Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory] |
| KMC-40 MIL-SPEC, Speaker Microphone with Antenna Connector [Intrinsically Safe Approved Accessory] |
| KMC-41M MIL-SPEC, IP54/55 Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-42WDM MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] |
| KMC-54WDM MIL-SPEC, IP67 (Immersion) Speaker Mic Compatible with ANR Feature |
| KWD-YH-3000U Yellow Housing Kit for NX-3x00 series Portables (Standard Key Model Only) |
CSA US APPROVED MODELS
