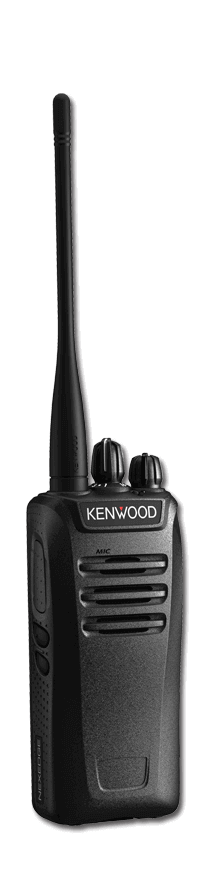

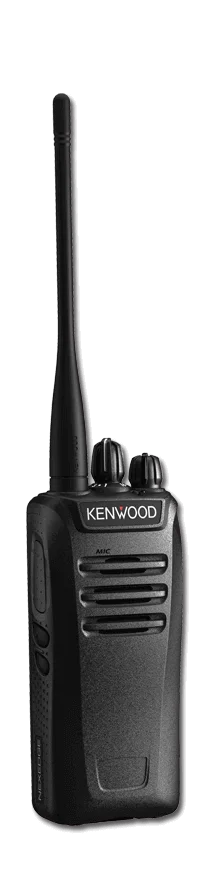

Your business will have to adopt digital radios sooner or later, you know that, but you probably wonder when to make the extra investment. A leap into the unknown? Not with the KENWOOD NX-240V and NX-340U NEXEDGE portable radios. They operate in both analog FM and NXDN digital modes, offering a cost-effective way to migrate smoothly from legacy systems while discovering the benefits of advanced digital technology – including increased effective coverage area, low noise for superior clarity, and inherent secured voice. All this comes in a tough, compact radio that is easy to operate, delivers high-powered audio, and ensures round-the-clock reliability. Don’t delay the opportunity to expand the potential of your business.
Frequency Band:
VHF, UJF
Frequency Range:
136-174 MHz / 400-470, 450-520 MHz
Power Output:
5W / 1W
Standard battery chemistry type:
Li-ion
Battery life (based on a 5-5-90 duty cycle):
10/12 Hours
Number of Channels/Groups/Zones:
32 Channels / 2 Zones
Channel spacing:
12.5 / 15 / 25* / 30* kHz 12.5 / 25* kHz Analog
12.5 / 25 kHz Digital
Dimensions Dimensions W x H x D (with standard battery)
2.13 x 4.8 x 1.39 in
Weight (with standard battery)
9.9 oz
Keypad / Keys
No Keypad
Display
No Display
Operating temperature
-22˚ F to +140˚ F
Mil spec
MIL-STD-810 C/D/E/F/G
IP Standards
IP54/55
 | KRA-22M VHF low-profile antenna 148-162 MHz |
| KRA-22M VHF low-profile antenna 162-174 MHz |
| KRA-22M VHF Low-profile helical antenna 136-150 MHz |
 | KRA-23M UHF low-profile antenna 450-490 MHz |
| KRA-23M2 UHF low-profile antenna 470-520 MHz |
| KRA-23M3 UHF Low-profile helical antenna 403-430 MHz |
 | KRA-26M VHF helical antenna 146-162 MHz |
| KRA-26M2 VHF helical antenna 162-174 MHz |
| KRA-26M3 VHF helical antenna 136-150 MHz |
 | KRA-27M UHF whip antenna 440-490 MHz |
| KRA-27M2 UHF whip antenna 470-520 MHz |
| KRA-27M3 UHF whip antenna 400-450 MHz |
 | KRA-41M VHF stubby antenna 148-162 MHz |
| KRA-41M2 VHF stubby antenna 162-174 MHz |
| KRA-41M3 VHF stubby antenna 136-150 MHz |
 | KRA-42M UHF stubby antenna 440-490 MHz |
| KRA-42M2 UHF stubby antenna 470-520 MHz |
| KRA-42M3 UHF stubby antenna 403-430 MHz |
 | KMB-28AK Six Unit Charger Adapter for the KSC-23BK/28/35SK chargers (chargers not included) |
 | KNB-29N 1500 mAh, NiMH battery - requires KSC-43K charger |
 | KNB-45L 2000 mAh, Li-ion battery - requires KSC-35K/SK charger |
 | KNB-69L 2550 mAh, Li-ion battery - requires KSC-35K/SK charger |
 | KNB-82LCM CSA US Intrinsically Safe Battery Li-ion 2000mAh, battery only[Intrinsically Safe Option] |
 | KSC-35SK 110~220 volt Fast rate single unit charger for KNB-45L/69L |
 | KSC-43K 110~220 volt Fast rate single unit charger for KNB-29N/45L/69L |
 | KVC-22 110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included) |
 | KBH-10 Spring action belt clip |
| KBH-8DS Leather swivel belt loop with portable D-Ring attachment |
 | KLH-187 Nylon case for TK-*200/*202/*300/*302/*400/*402 Series |
 | KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic |
 | KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT |
| KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear |
 | KHS-26 Clip Mic w/earphone |
 | KHS-27A D-Ring Ear Hanger w/PTT & Mic |
| KHS-31C C-Ring Ear Hanger w/PTT & Mic |
 | KHS-7 Single muff headset w/boom mic |
| KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT |
 | KHS-8BL Two-Wire palm mic w/earphone (black) |
 | KHS-9BL Three-Wire lapel mic w/earphone (black) |
| KMC-21 Compact speaker microphone |
 | KMC-45D MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack) |
